K7SU KEYS - Hand Made in America

For more information email Kelly@K7SU.com

These straight keys do not use a spring for tension...they use NEODYMIUM MAGNETS!

The "Titan"

Polished Brass  Titan
Approx 9 3/4L x 2 1/2H x 3 W.  The underside of the key has a clear acrylic plate with gripping rubber feet.
The key features a brass plate with your call sign and the serial number.  Key is delivered with gold highlight line on top of base.  These straight keys do not use a spring...they use a neodymium magnet that can be adjusted just like a spring by adjusting the space between the magnets.  One magnet is housed in the screw-adjustable housing at the rear of the key beam and the other magnet is housed just below the surface of the wooden base.  The brass is polished to a near mirror finish.



The "Titan Camelback"

Polished Brass Camelback
Approx 9 3/4L x 2 3/4H x 3W.  The underside of the key has a clear acrylic plate with gripping rubber feet.  These straight keys do not use a spring...they use a neodymium magnet that can be adjusted just like a spring by adjusting the space between the magnets.  One magnet is housed in the screw-adjustable housing at the rear of the key beam and the other magnet is housed just below the surface of the wooden base.  The brass is polished to a near mirror finish.  The key features a brass plate call sign and the serial number.

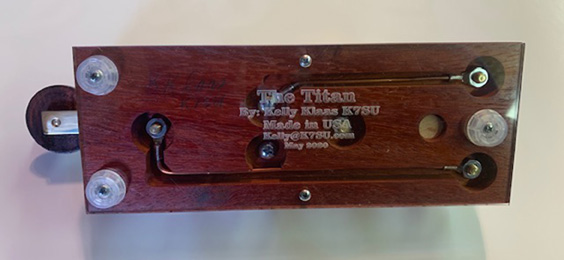

The underside a clear acrylic base cover attached with six screws.  There are three non-slip adhesive-attached feet.  A #12 wire is used to complete the connections.

"KEY" Features of these keys...

*  Completely hand made by a CW OP, K7SU.
*  ALL brass parts are C360 brass.
*  Base and knob made of African Padauk hardwood and worked to a smooth finish. (Except the walnut base key)
*  NO SPRING!  Adjustable tension with NEODYMIUM MAGNETS!
*  Silver plated contacts.
*  No Bearings...Adjustable trunions like the classic J-38 style vintage keys.
*  Grooved underbase with clear plastic plate.
*  Soft plastic feet to reduce slipping.
*  Customized, laser-engraved brass plate with call sign and serial number.
*  Extremely smooth operation.

Click HERE for a short video about the TITAN key.
Click HERE for a 30 minute video showing the Titan Key being made.

For more information please email Kelly@k7su.com
Kelly Klaas  K7SU
Twin Falls, Idaho
